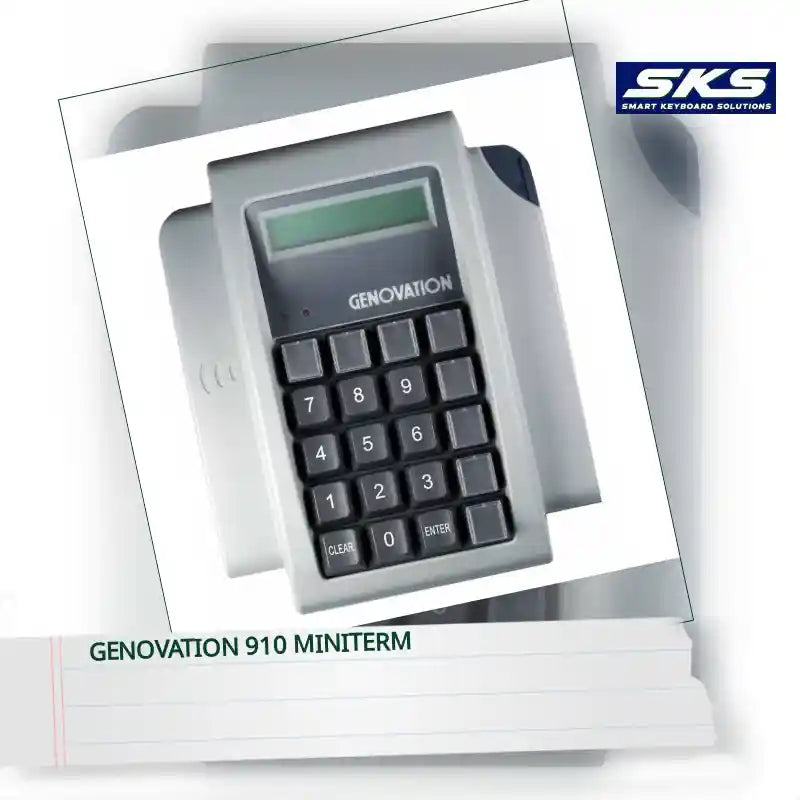

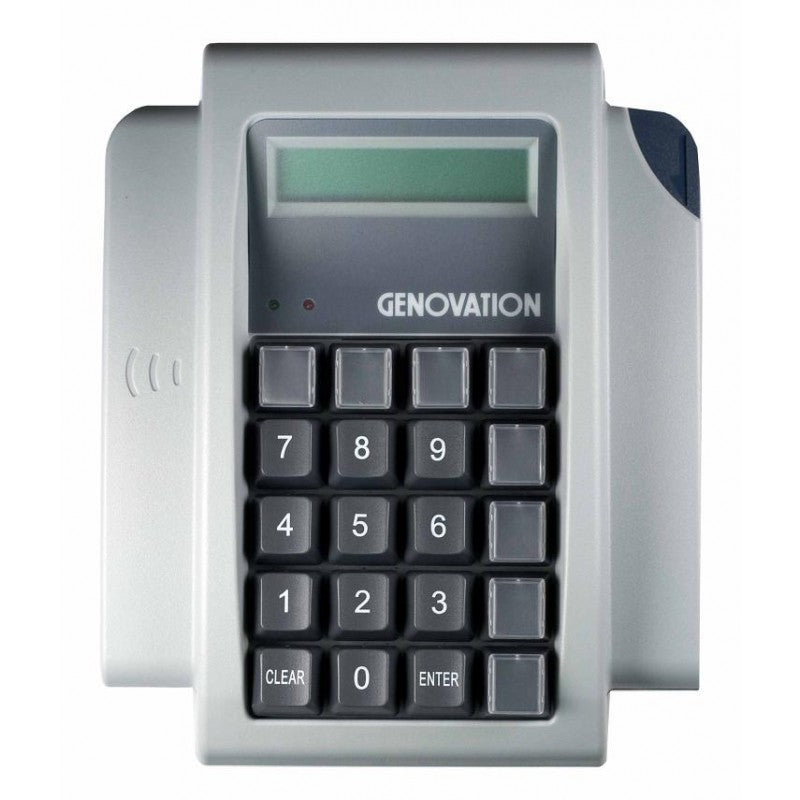

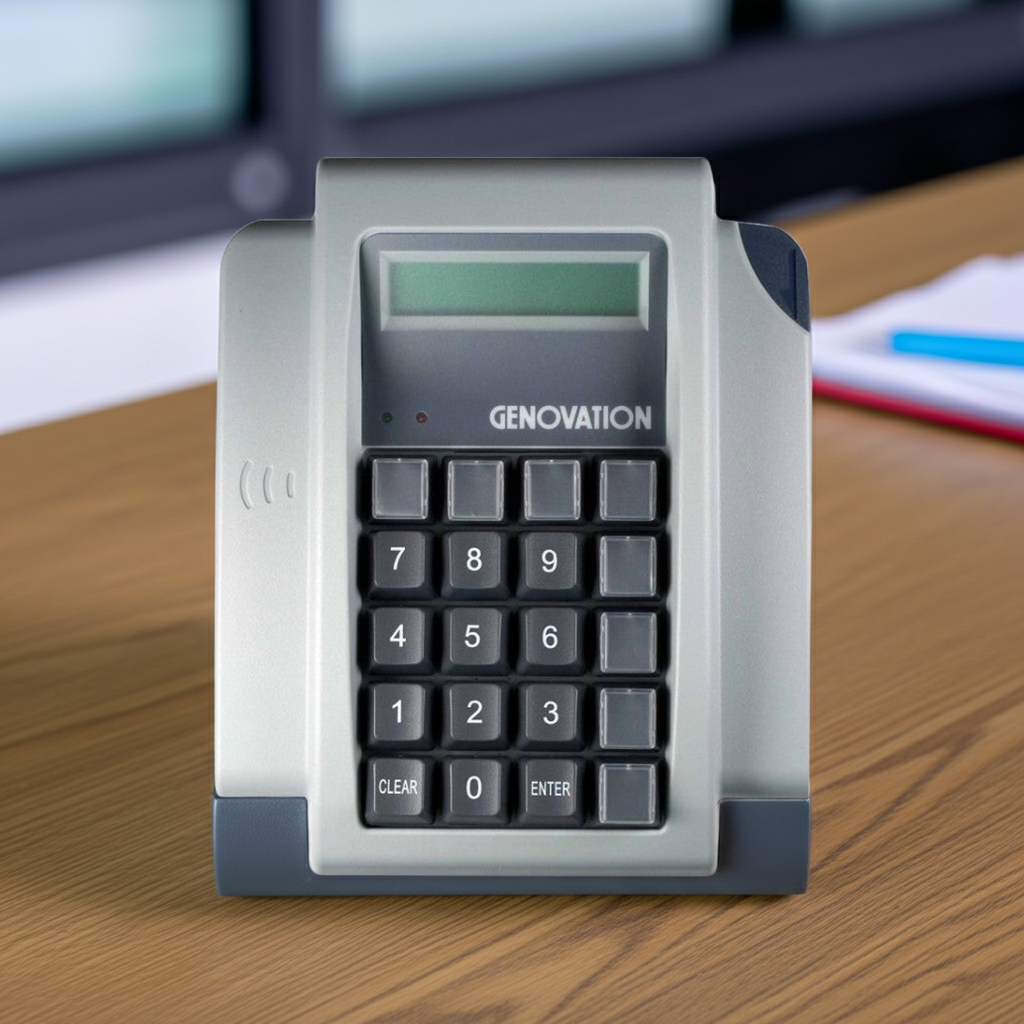

Genovation 910 MiniTerm

FREE SHIPPING IN THE USA

Ordering 5 or more? Contact us for a volume quote.

The Genovation MiniTerm 910 is a high-performance, fully programmable LCD mini-terminal designed for fast, reliable, and customizable data entry. Featuring twenty full-travel mechanical keys—including eight relegendable keys for custom labeling—the 910 provides a superior tactile experience for demanding commercial and industrial applications. With flexible connectivity options and support for various integrated readers, it is an ideal interface for everything from POS systems and CNC machines to security and automation control.

Key Benefits

Superior Tactile Feedback: Equipped with twenty full-travel keys rated for 20+ million operations for precise, reliable data input.

Highly Customizable: Eight relegendable keys allow for tailored labeling; fully programmable key tables and macro support.

Versatile Integration: Ideal for PCs, printers, automation systems, POS terminals, security systems, and industrial PLCs.

Reliable Construction: Designed for long-term durability in commercial and industrial environments.

Easy to Configure: Includes Genovation programming software; supports automated LCD scripting mode and legacy COM port applications.

Features

20 full-travel keys (8 relegendable)

2-line back-lit Super-Twist LCD

Two programmable LEDs (green and red)

Internal buzzer and audible key beeper

Non-volatile FLASH/EEPROM memory (100+ year retention)

Detachable USB cable

Compatible with Mac and Linux (Firmware Version 6.0+)

Connectivity Options

USB: 1.0 / 1.1 / 2.0 compliant; bus-powered. Supports HID keyboard mode and virtual serial functionality. 6 ft cable included (optional 12 ft or 25 ft cables).

RS232: Fully RS232C compliant; powered by external 5V DC adapter. 6 ft cable included (optional 25 ft cable).

Ethernet: 10Base-T / 100Base-TX (auto-sensing). Supported protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.

Internal Reader Options

Barcode Scanner: Front-firing visible red beam.

Slotted Barcode Reader: Infrared swipe reader.

Magnetic Stripe Reader: Reads ATM cards, driver’s licenses, and credit cards.

RFID Reader: Supports 125 kHz and 13.56 MHz (MiFARE) cards and tags.

Dallas iButton Reader: One-Wire probe receptacle for unique tag registration.

Proximity Card Reader: Custom-matched to your existing access control system.

Specifications

Mechanical: 20,000,000+ operations; 0.686 N operating force.

Environmental: 0–70°C (32–158°F) operating temperature; 0–98% non-condensing humidity; FCC Class B compliant.

Dimensions: 18.5 cm × 15.0 cm × 5.3 cm.

Weight: 0.3 kg (unit); 1.0 kg (shipping).

Reseller and Government Purchasing

Resellers: Contact us for reseller pricing and bulk discounts.

Government Buyers: Smart Keyboard Solutions is a 100% woman-owned small business, eligible for government purchasing programs and discounts.
