Genovation 909 MinTerm with braille

FREE SHIPPING IN THE USA

Ordering 5 or more? Contact us for a volume quote.

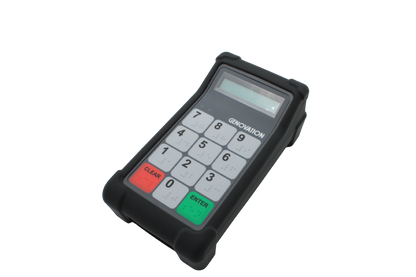

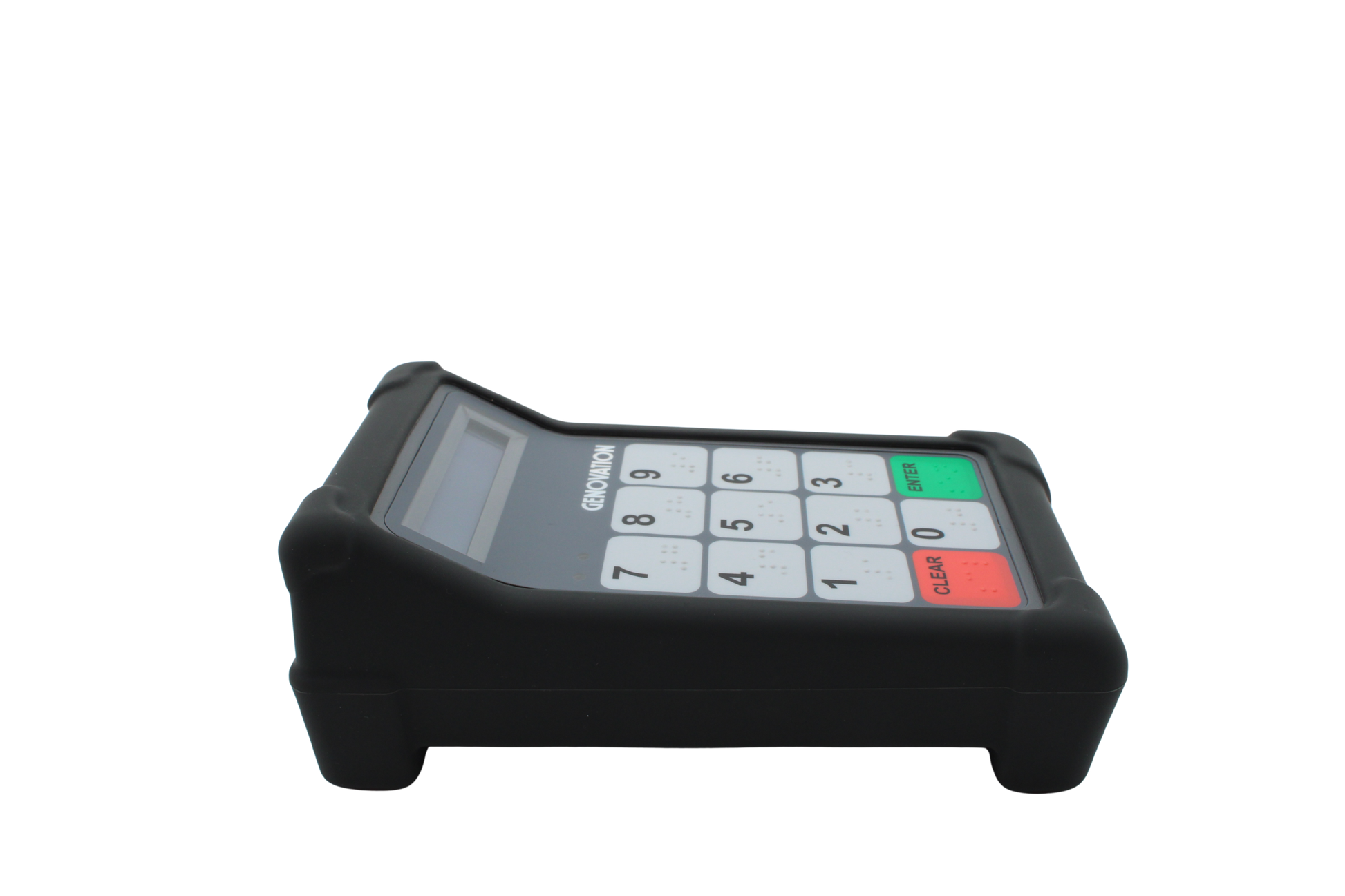

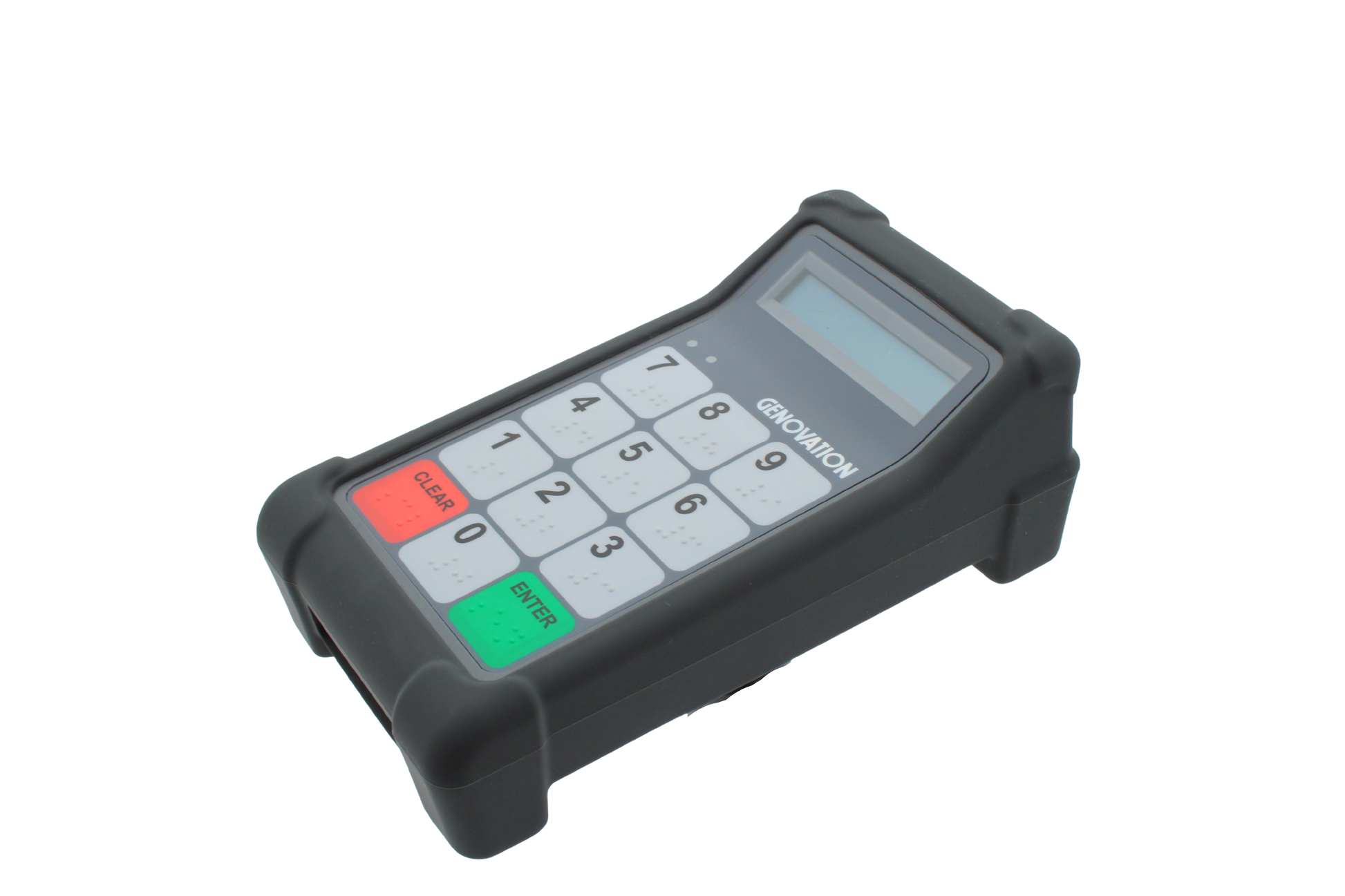

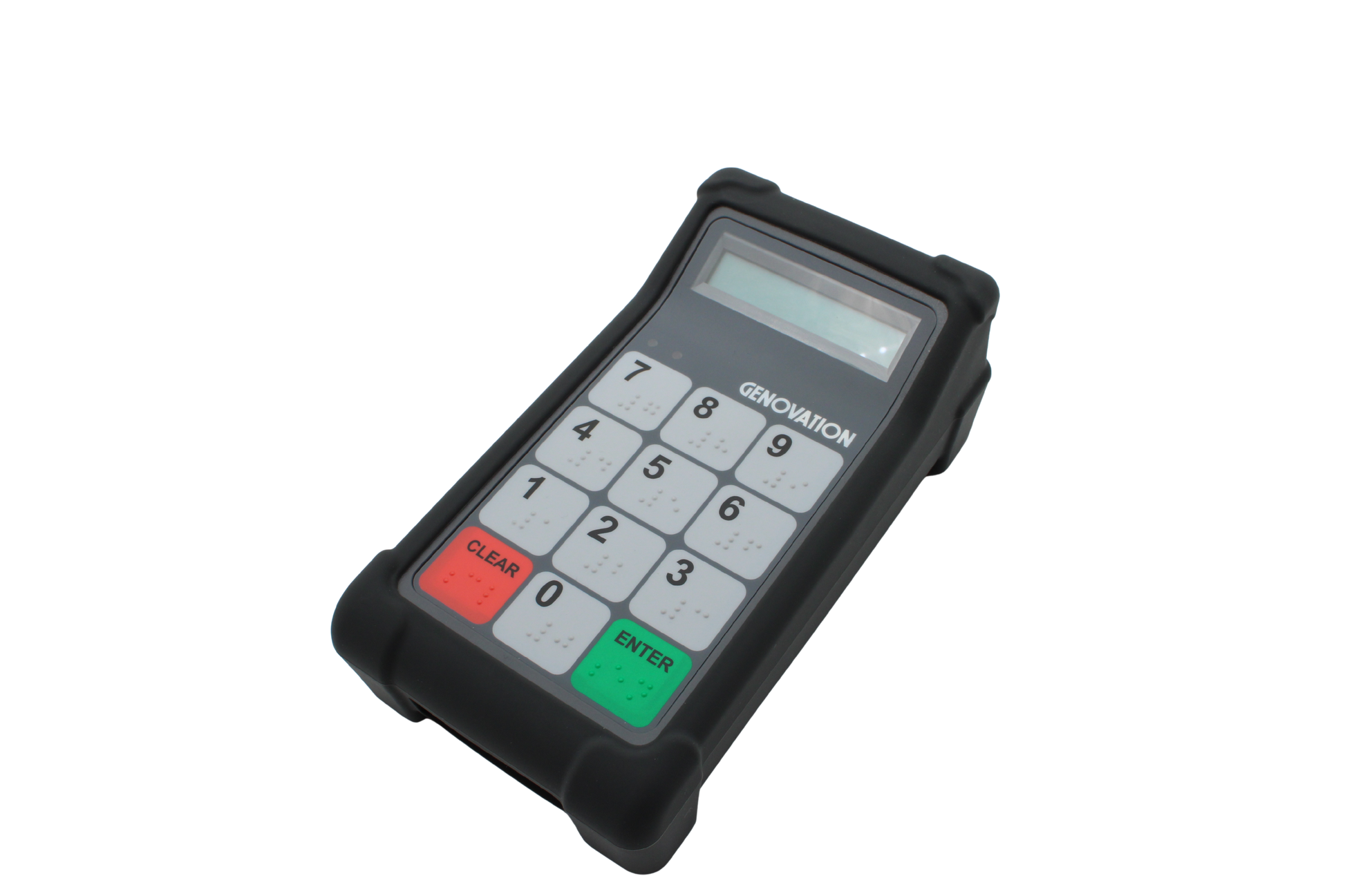

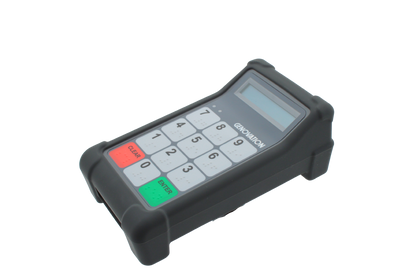

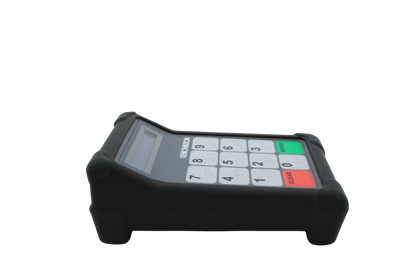

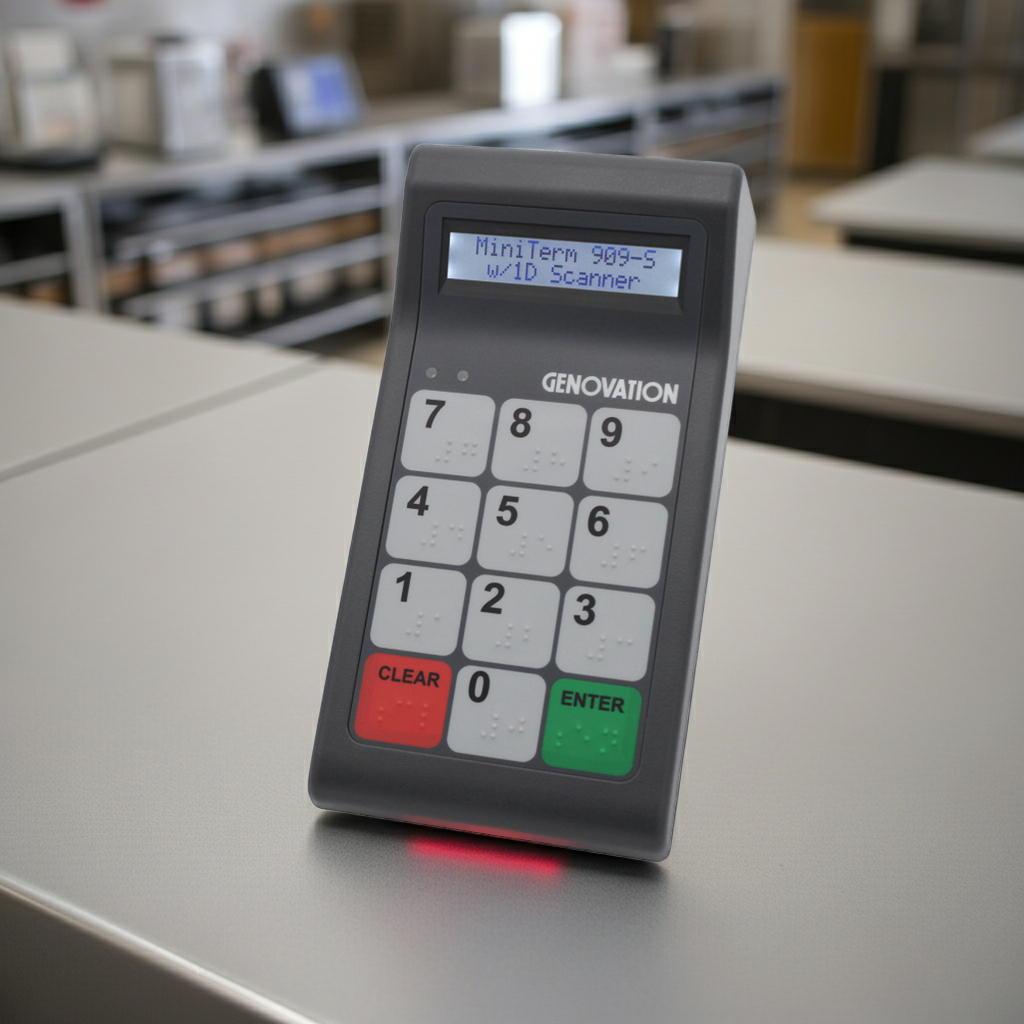

The Genovation MiniTerm 909 is a highly versatile, fully programmable LCD mini-terminal featuring a 12-key flat membrane layout with integrated Braille. Designed for accessibility and durability, it now ships with a ruggedized, FDA-grade silicone rubber boot that provides impact protection and a non-slip grip. Ideal for diverse environments—including retail, industrial, and food service—the 909 offers flexible connectivity and extensive customization to meet the needs of any specialized user interface.

Key Benefits

Accessibility Focused: Flat membrane layout includes Braille, making it an excellent choice for environments where users with visual impairments interact with the terminal.

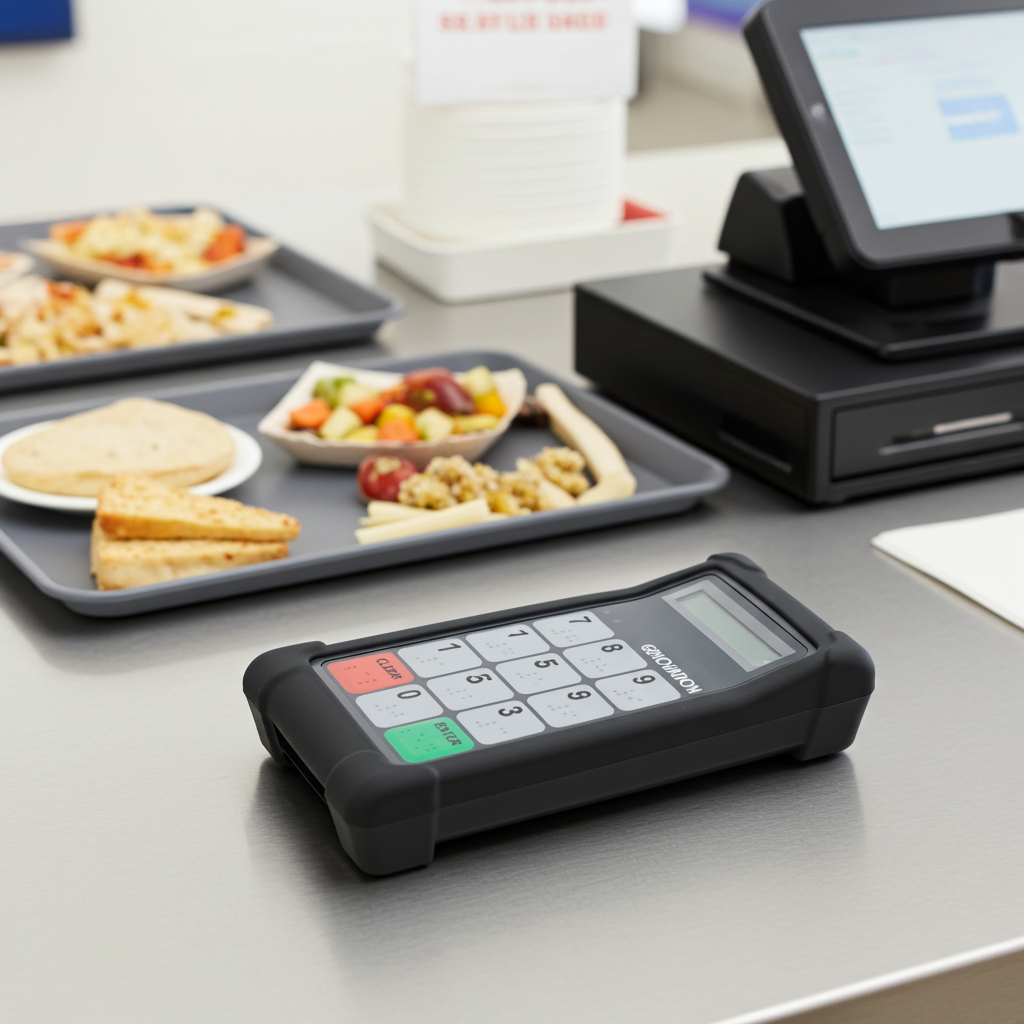

Rugged & Hygienic: Includes a protective, FDA-grade silicone rubber boot that is easy to clean and shields the device from drops, bumps, and spills.

Versatile Integration: Ideal for POS systems, industrial automation, security access, digital signage, and more.

High Performance: Features a fully programmable key table, macro support, and automated LCD scripting for complex workflows.

Flexible Connectivity: Supports USB, RS232, Ethernet, and Wi-Fi configurations.

Features

12 sealed membrane keys (rated for 20+ million operations)

2-line back-lit Super-Twist LCD (functions as a customer-facing pole display)

Two programmable LEDs (green and red)

Internal buzzer/alarm and audible key beeper

Non-volatile FLASH/EEPROM memory (100+ year retention)

Detachable USB cable

2-year warranty

Connectivity Options

USB: 1.0 / 1.1 / 2.0 compliant; bus-powered. Supports HID keyboard mode and virtual serial functionality. 6 ft cable included (optional 12 ft or 25 ft cables).

RS232: Fully RS232C compliant; powered by external 5V DC adapter. 6 ft cable included (optional 25 ft cable).

Ethernet: Supports 10Base-T/100Base-TX. Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.

Wi-Fi: 802.11 b/g wireless networking with up to 328 ft indoor range. Protocols: ARP, UDP, TCP, Telnet, ICMP, SNMP, DHCP, BOOTP, HTTP, SMTP, TFTP.

Internal Reader Options

Barcode/QR: Front-firing visible red beam; optional QR scanner capable of reading standard barcodes and QR codes.

Additional Reader Support: Magnetic card readers, barcode slot readers, RFID readers, and fingerprint readers.

Specifications

Mechanical: 20,000,000+ operations; 0.686 N operating force.

Environmental: 0–70°C (32–158°F) operating temperature; 0–98% non-condensing humidity; FCC Class B compliant.

Dimensions: 18.41 cm × 9.5 cm × 3.5 cm.

Weight: 8.4 oz (unit); 2.0 lbs (shipping).

Supported Operating Systems

USB HID: Windows 98SE through Windows 11, Mac OS, Linux, DOS, and embedded systems.

Virtual COM Port: Windows 2000 through Windows 11.

Ethernet Virtual COM: Windows Vista, XP, 2000, and 2003 Server.
