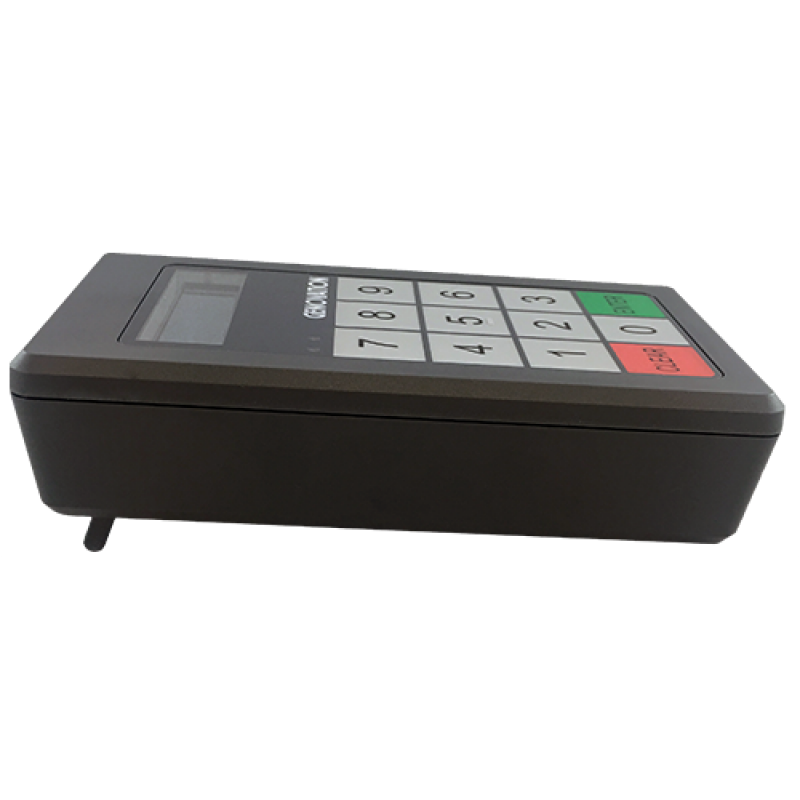

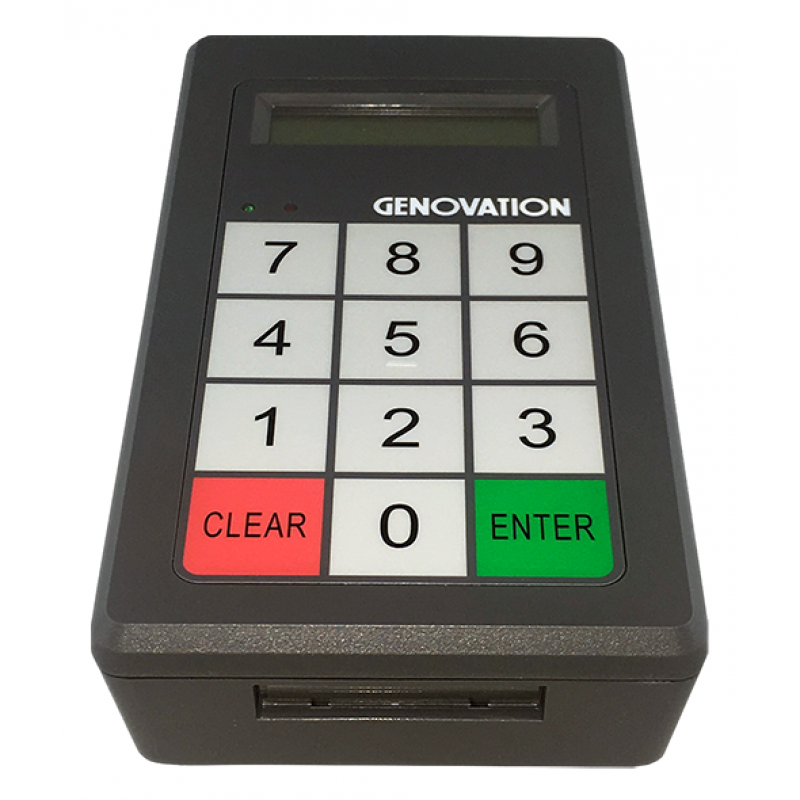

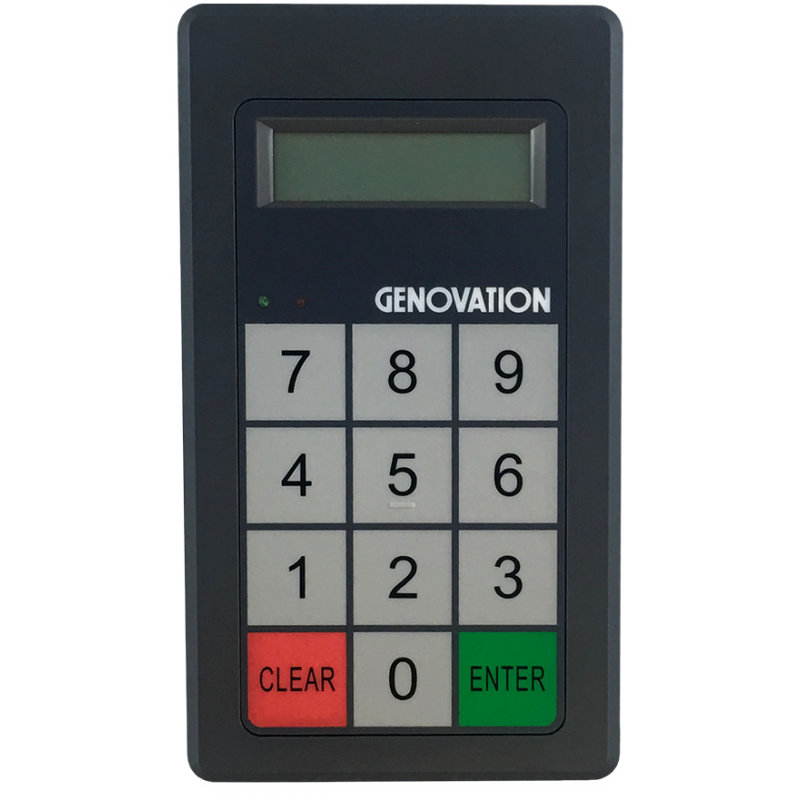

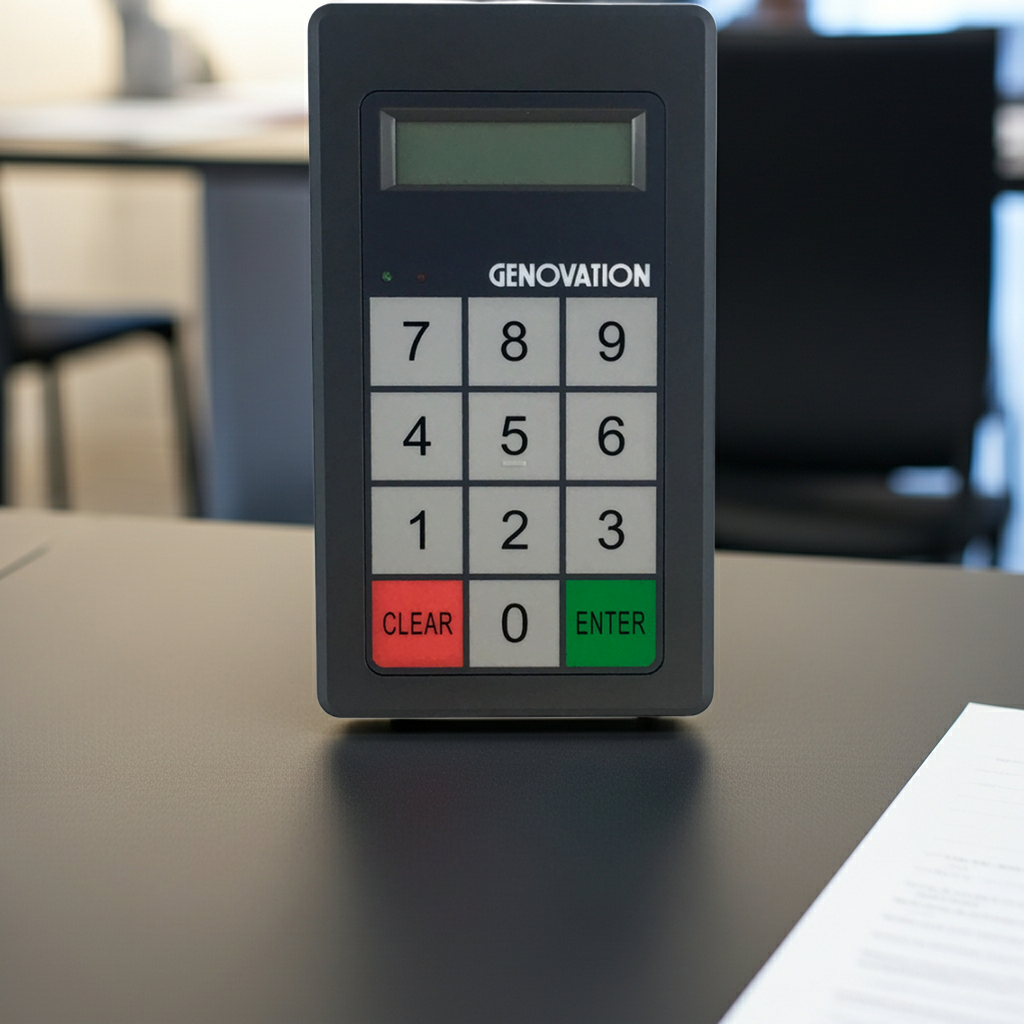

Genovation 908 MiniTerm

FREE SHIPPING IN THE USA

Ordering 5 or more? Contact us for a volume quote.

The Genovation MiniTerm 908 is a fully programmable LCD mini-terminal designed for fast, reliable, and customizable data input. Featuring a durable, sealed membrane design, it is ideal for demanding commercial and industrial environments, ranging from POS systems and industrial PLCs to security systems and digital signage. With flexible mounting options, extensive connectivity, and easy-to-use software, the 908 is a versatile interface solution for any process requiring precise user control.

Key Benefits

Versatile Integration: Ideal for PCs, printers, automation systems, CNC mill controls, access control, and electronic instruments.

Fully Customizable: Fully programmable key tables and macro support for tailored workflows.

Flexible Mounting: Designed for wall-mounting or desktop use (includes riser legs); compatible with bendable wall-mount/table stand accessories.

Reliable Construction: Sealed membrane design rated for 20+ million operations; suitable for harsh environments.

User-Friendly: Includes Genovation’s MacroMaster232 software for easy setup and configuration.

Features

12 sealed membrane keys

2-line back-lit Super-Twist LCD (also functions as a customer-facing pole display)

Two programmable LEDs (green and red)

Automated LCD scripting mode

Internal buzzer and audible key beeper

Non-volatile FLASH memory for key data and settings

Detachable USB cable included

1-year warranty

Connectivity Options

USB: 1.0 / 1.1 / 2.0 compliant; bus-powered. Supports HID keyboard mode and virtual serial functionality. 6 ft cable included (optional 12 ft or 25 ft cables).

RS232: Fully RS232C compliant; powered by external 5V DC adapter. 6 ft cable included (optional 25 ft cable).

Ethernet: Supports 10Base-T/100Base-TX. Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.

Wi-Fi: 802.11 b/g wireless networking with up to 328 ft indoor range. Protocols: ARP, UDP, TCP, Telnet, ICMP, SNMP, DHCP, BOOTP, HTTP, SMTP, TFTP.

Specifications

Mechanical: 20,000,000+ operations; 0.686 N operating force.

Memory: FLASH + EEPROM with 100+ year retention.

Environmental: 0–70°C (32–158°F) operating temperature; 0–98% non-condensing humidity; FCC Class B compliant.

Dimensions: 18.41 cm × 10.5 cm × 4.3 cm.

Weight: 0.3 kg (unit); 1.0 kg (shipping).

Supported Operating Systems

USB HID: Windows 98SE through Windows 11, Mac OS, Linux, DOS, and embedded systems.

Virtual COM Port: Windows 2000 through Windows 11.

Ethernet Virtual COM: Windows Vista, XP, 2000, and 2003 Server.

Additional: Version 6.0 firmware is compatible with Mac and Linux.
