Genovation 906 MiniTerm

FREE SHIPPING IN THE USA

Ordering 5 or more? Contact us for a volume quote.

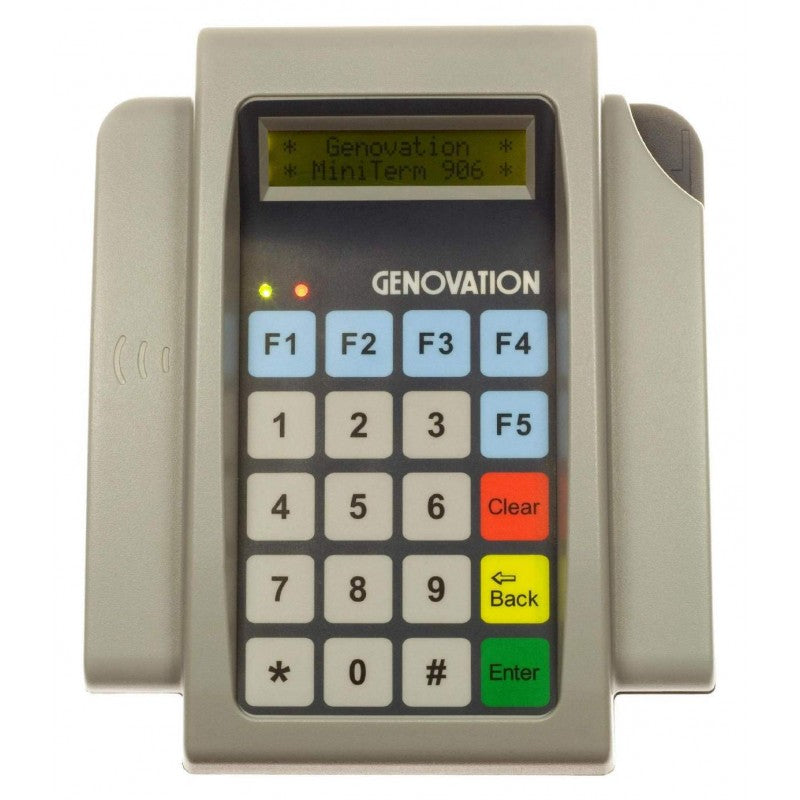

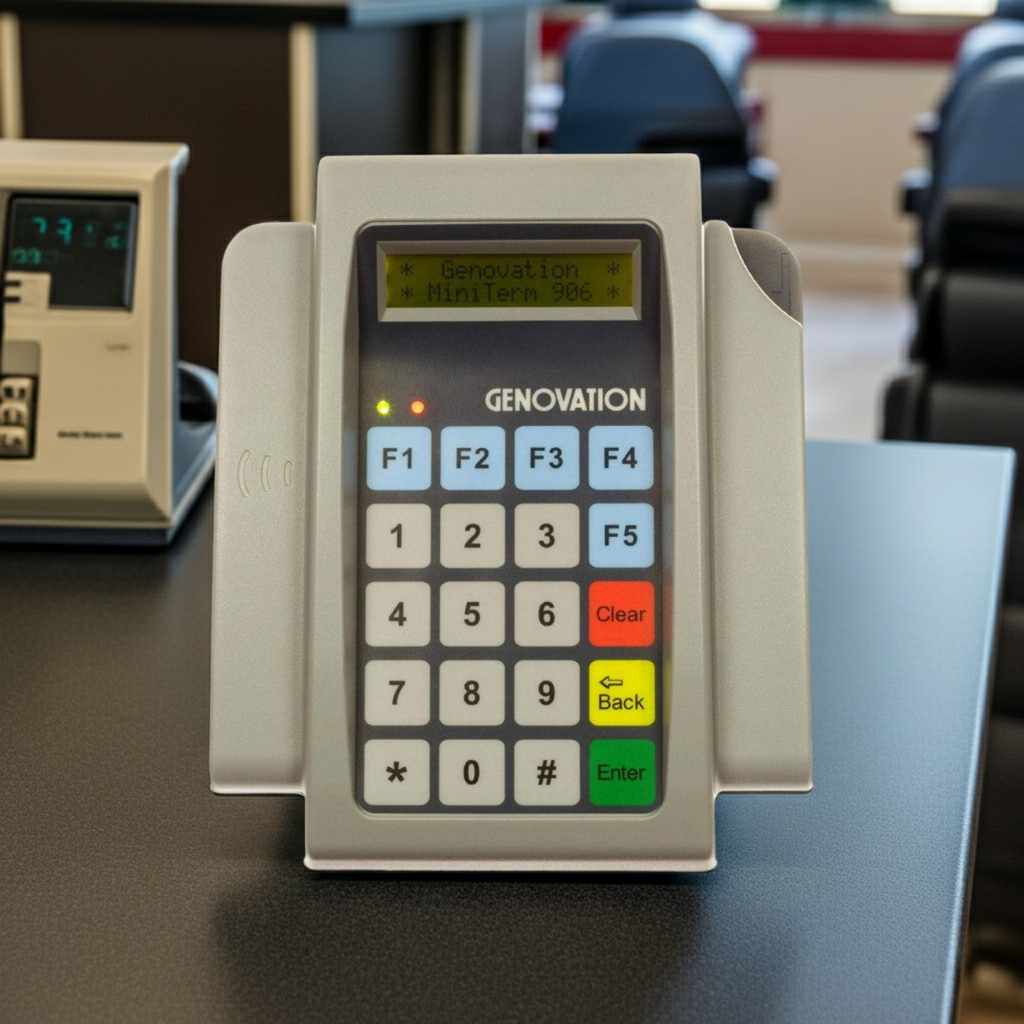

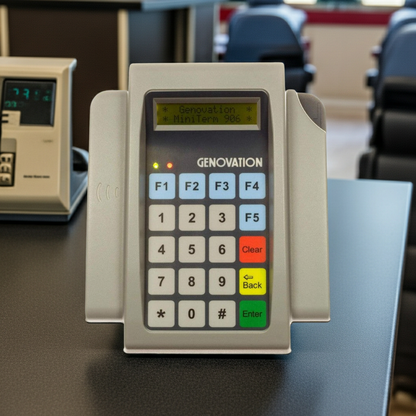

The Genovation MiniTerm 906 is a fully programmable LCD mini-terminal engineered for fast, reliable, and customizable data entry across POS, industrial, automation, and security environments. With advanced macro capability, multiple integrated reader options, and flexible connectivity (USB, RS232, Ethernet), the MiniTerm 906 delivers exceptional versatility for both modern and legacy systems. Its detachable USB cable allows for easy installation, and the LCD can also function as a customer-facing pole display.

Key Benefits

Versatile Integration: Ideal for POS systems, industrial automation, access control, manufacturing, CNC machines, video systems, and more.

Fully Programmable: Features custom key tables, macro support, and system configurations.

Flexible Connectivity: Compatible with both modern and legacy COM port applications (USB, RS232, Ethernet).

Rugged Design: Sealed membrane construction built for high-volume, demanding commercial and industrial environments.

Easy Setup: Includes Genovation programming software for straightforward customization.

Features

20 sealed membrane keys rated for 20+ million presses

2×16 back-lit Super-Twist LCD (sealed for durability)

Two programmable LEDs (green and red)

Automated LCD scripting mode

Internal buzzer and audible key beeper

Non-volatile FLASH memory for long-term retention

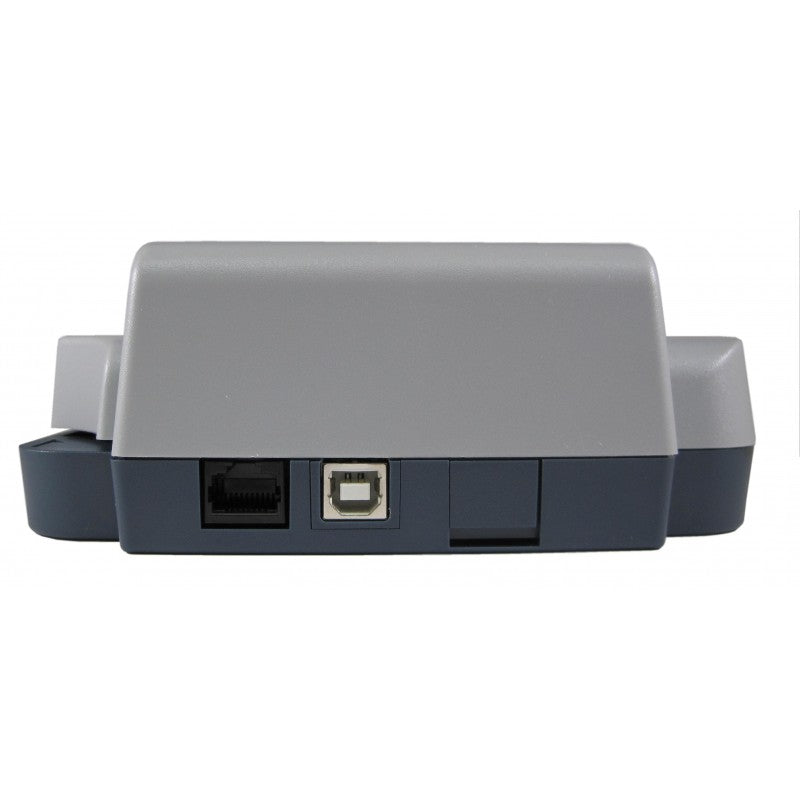

Detachable USB cable

1-year warranty

Connectivity Options

USB: 1.0 / 1.1 / 2.0 compliant; bus-powered. Supports HID keyboard mode and virtual serial functionality. 6 ft cable included (optional 12 ft or 25 ft cables).

RS232: Fully RS232C compliant; powered by external 5V DC adapter. 6 ft cable included (optional 25 ft cable).

Ethernet: 10Base-T / 100Base-TX (auto-sensing). Supports TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP.

Internal Reader Options

Barcode Scanner: Front-firing visible red beam.

Slotted Barcode Reader: Infrared swipe reader.

Magnetic Stripe Reader: Reads ATM cards, licenses, credit cards, and more.

RFID Reader: 125kHz or 13.56MHz (MiFARE).

Dallas iButton Reader: Unique 64-bit tag registration.

Proximity Card Reader: Custom-matched to your specific access control system.

Specifications

Mechanical: 20,000,000+ operations; 0.686N operating force.

Memory: FLASH + EEPROM (non-volatile, 100+ year retention).

LCD Display: 2×16 Super-Twist STN with LED backlight.

LED Indicators: 1 green, 1 red (both programmable).

Environmental: 0–70°C operating temperature; 0–98% non-condensing humidity; FCC Class B compliant.

Dimensions: 18.5 cm × 15.0 cm × 5.3 cm.

Weight: 0.3 kg (unit); 1.0 kg (shipping).

Supported Operating Systems

USB HID Keyboard: Windows 98SE through Windows 11, Mac OS, Linux, and embedded systems.

Virtual COM Port: Windows 2000 through Windows 11.

Ethernet Virtual COM: Windows Vista, XP, 2000, and 2003 Server.

Additional: Firmware Version 6 supports Mac OS and Linux.

Reseller and Government Purchasing

Resellers: Contact us for reseller pricing and bulk discounts.

Government Buyers: Smart Keyboard Solutions is a 100% woman-owned small business, eligible for government purchasing programs and discounts.
