Genovation 905 MiniTerm

FREE SHIPPING IN THE USA

 Ordering 5 or more? Contact us for a volume quote.

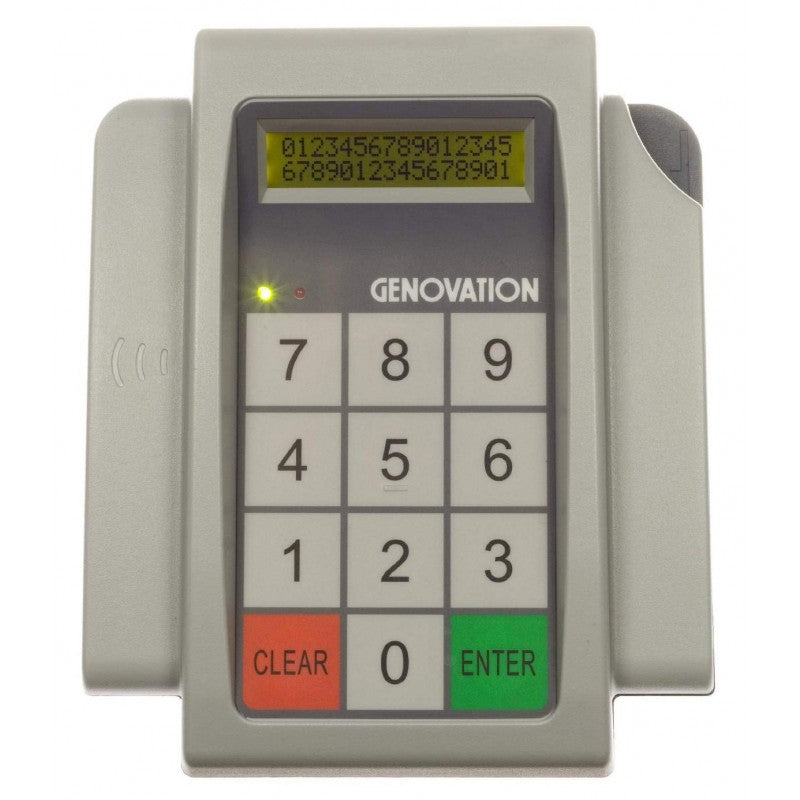

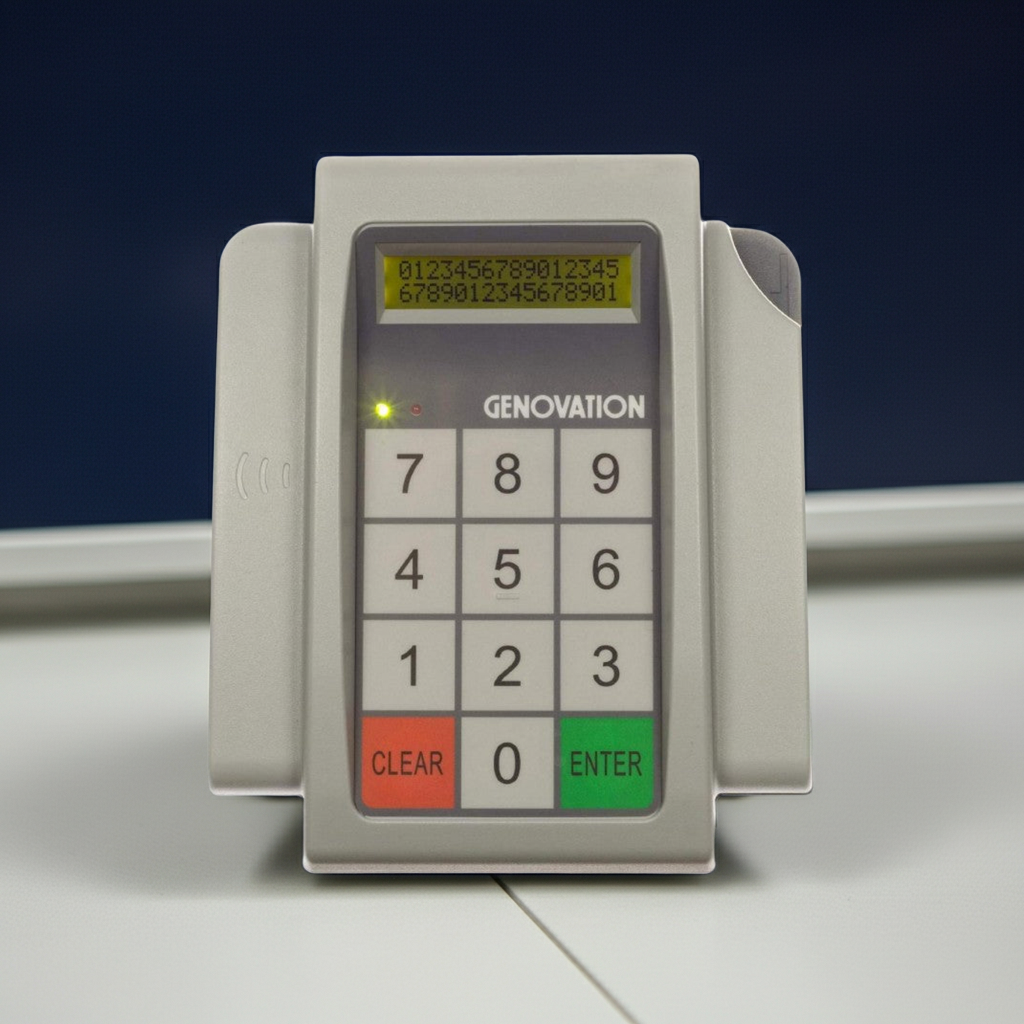

The Genovation MiniTerm 905 is a compact, fully programmable LCD mini‑terminal designed for fast, reliable data entry across POS, industrial, automation, and security environments. With advanced macro capability, multiple reader options, and flexible connectivity (USB, RS232, Ethernet, Wi‑Fi), the MiniTerm 905 is one of the most versatile programmable keypads available.

Whether you’re building a custom user interface, upgrading legacy equipment, or improving workflow automation, the MiniTerm 905 delivers long‑term durability and exceptional flexibility.

Key Benefits

Ideal for POS systems, industrial automation, access control, manufacturing, CNC machines, video systems, and more

Fully programmable keys and macros for custom workflows

Multiple integrated reader options (barcode, magstripe, RFID, iButton, proximity)

Compatible with both modern and legacy systems

Rugged, compact design built for high‑volume environments

Includes Genovation programming software for easy setup

Features

12 sealed membrane keys rated for 20+ million presses

2×16 back‑lit Super‑Twist LCD

Two programmable LEDs (green and red)

Fully programmable key table with macro support

Automated LCD scripting mode

Internal buzzer/alarm and audible key beeper

Flash memory for long‑term retention

Detachable USB cable

1‑year warranty

Connectivity Options

USB

USB 1.0 / 1.1 / 2.0 compliant

Bus‑powered

Includes 6 ft detachable cable

Optional 12 ft or 25 ft cables

Supports USB HID keyboard mode

Supports USB virtual COM port

RS232

Fully RS232C compliant

Powered by external 5V DC adaptor

Includes 6 ft cable

Optional 25 ft cable available

Ethernet

10Base‑T / 100Base‑TX (auto‑sensing)

Supports TCP/IP, UDP/IP, Telnet, DHCP, HTTP, SNMP, and more

Ideal for networked installations

Wi‑Fi

802.11 b/g wireless networking

Range up to 328 ft indoors

Supports ARP, UDP, TCP, Telnet, DHCP, HTTP, SMTP, TFTP

Internal Reader Options

Barcode Scanner – Front‑firing visible red beam

Slotted Barcode Reader – Infrared swipe reader

Magnetic Stripe Reader – Reads ID cards, credit cards, licenses

RFID Reader – 125kHz or 13.56MHz (MiFARE/Ultralight)

Dallas iButton Reader – Unique 64‑bit tag registration

Proximity Card Reader – Custom‑matched to your access control system (HID, Indala, etc.)

Specifications

Mechanical

Key life: 20,000,000+ operations

Operating force: 0.686N (79gf)

Memory

FLASH + EEPROM

Non‑volatile, 100+ year retention

LCD Display

2×16 Super‑Twist STN

LED backlight

LED Indicators

1 green, 1 red (both programmable)

Environmental

Operating temperature: 0–70°C (32–158°F)

Humidity: 0–98% non‑condensing

FCC Class B

Dimensions & Weight

Size: 18.5 cm × 15.0 cm × 5.3 cm (7.25" × 6.0" × 2.25")

Weight: 0.3 kg (0.65 lbs)

Shipping Weight: 1.0 kg (2.0 lbs)

Supported Operating Systems

USB HID Keyboard: Windows 98SE through Windows 11

Virtual COM Port / MiniTermPro / MacroMaster: Windows 2000 through Windows 11

Ethernet Virtual COM Port: Windows Vista, XP, 2000, 2003 Server

Mac OS, DOS, Embedded systems

Firmware Version 6.0 supports Mac and Linux

Reseller and Government Purchasing

Resellers: Contact us for reseller pricing and bulk discounts. Government Buyers: Smart Keyboard Solutions is a 100% woman‑owned small business, eligible for government purchasing programs and discounts.
